14.6V 20A LiFePO4 Charger – Fully Potted for RV, Marine & Off-Grid
The Sentorise SENT-CHG-14V6-20A-WP is a compact 280W LiFePO4 battery charger designed for 12.8V lithium iron phosphate batteries. It delivers a stable 14.6V / 20A output, making it ideal for RVs, campervans, boats, off-grid solar systems, and industrial outdoor applications.
With its fully potted housing, the charger protects internal electronics from moisture, dust, salt air, and vibration — built for demanding environments where standard plastic chargers may not last.
Key Specifications
| Item | Specification |
|---|---|
| Model | SENT-CHG-14V6-20A-WP |
| Output | 14.6V / 20A / 280W |
| Battery Type | 12.8V LiFePO4 |
| Charging Time | ~5 hours for 100Ah battery |
| Operating Temperature | -20°C to +50°C |
| Housing | Fully potted, water-protected |
| Input Connector | EU Plug |
| Output Connector | Anderson Connector |
| Dimensions | 176 × 124.5 × 59 mm |
| Weight | 1.45 kg |
Key Benefits
🛡️ Fully Potted Protective Design
Unlike standard plastic-shell chargers, the entire electronic circuit is embedded in potting material — protecting against moisture, condensation, dust, salt air, and vibration. Ideal for marine areas, roof boxes, garages, and outdoor solar systems.

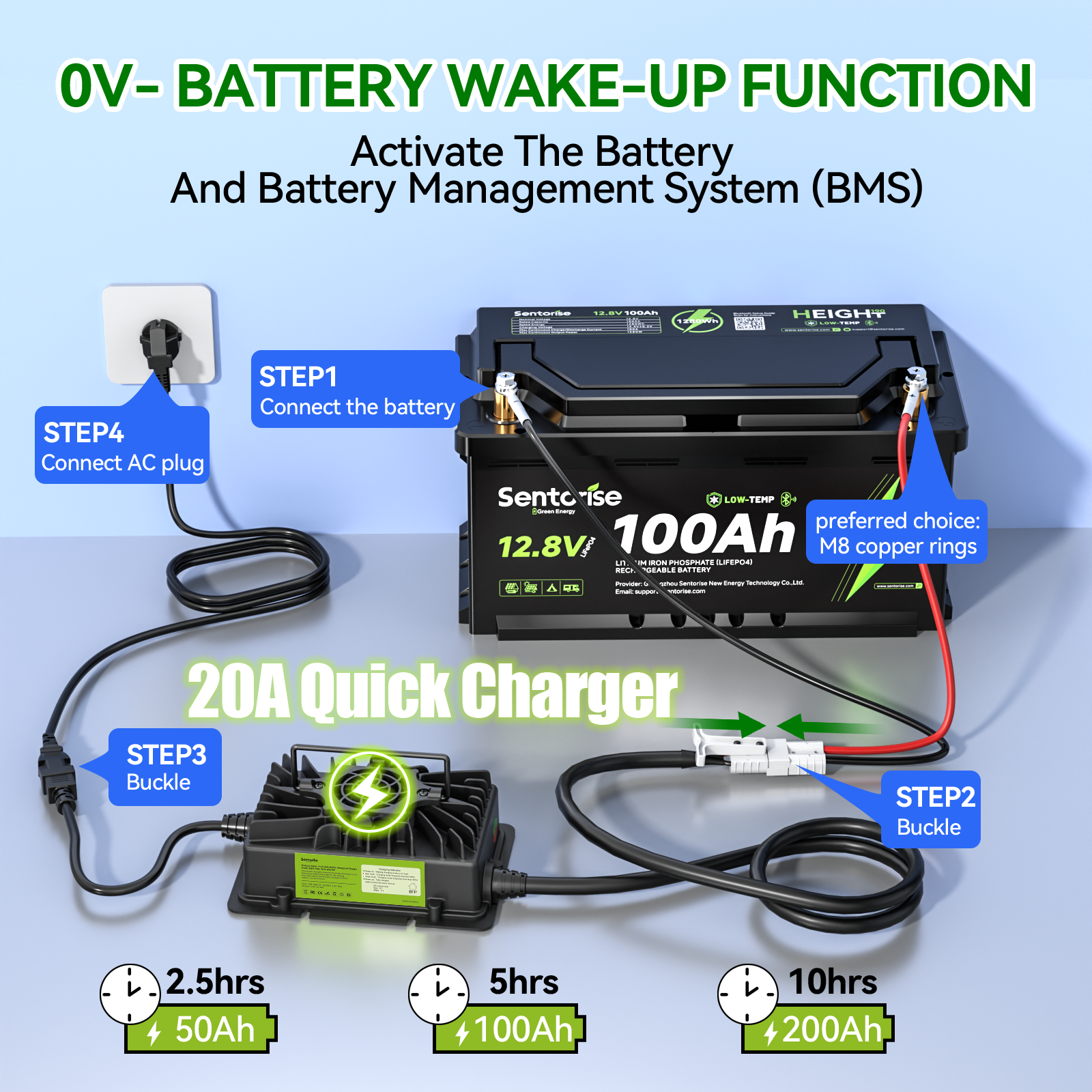

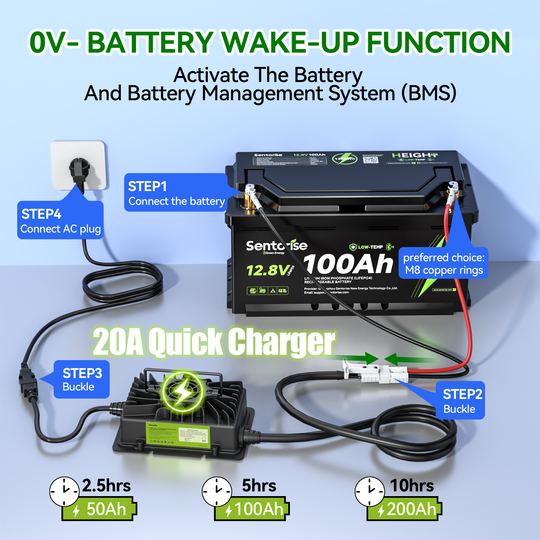

⚡ 0V Battery Wake-Up
The charger detects deeply discharged LiFePO4 batteries from 0V and automatically starts a safe wake-up charging process — useful when a battery has entered protection or sleep mode after long storage or accidental deep discharge.
🔋 Fast 20A Charging
With a 20A charging current, it can fully charge a 100Ah LiFePO4 battery in around 5 hours — up to 4× faster than a standard 5A charger.
🌡️ Wide Temperature Range
Operates from -20°C to +50°C, covering typical conditions across Northern Europe, Southern Europe, and North America. Note: charging capability below 0°C depends on the battery's own low-temperature protection.
Typical Applications
- 🚐 RV / Motorhome: Fast charging for 12.8V LiFePO4 house batteries via 230V shore power
- 🏕️ Campervan: Compact Anderson output for direct battery connection in tight spaces
- ⚓ Boat / Marine: Fully potted housing resists moisture, salt air, and vibration
- ☀️ Off-Grid Solar: Grid backup charger when solar or wind power is insufficient
- 🏭 Industrial / Outdoor: Suitable for dusty, humid, or vibration-prone environments
⚠️ Important Notes
- Designed only for 12.8V LiFePO4 batteries
- Not compatible with lead-acid, AGM, gel, or NMC lithium batteries
- For 24V or 48V systems, please use a dedicated charger model
FAQ
-
Is this charger suitable for RVs?
Yes — designed for 12.8V LiFePO4 RV house batteries with EU plug and Anderson output. -
Can I use it for off-grid solar?
Yes, as a grid backup charger. It does not replace an MPPT solar charge controller. -
What is the advantage of a fully potted charger?
Better protection against moisture, dust, salt air, and vibration compared to standard plastic-housing chargers. -
Does it work at -20°C?
The charger is rated for -20°C, but whether the battery can be charged at that temperature depends on the battery model. -
What connector does the charger use?
Anderson connector on the output side — widely used in RV, marine, and off-grid systems. -
What is included?

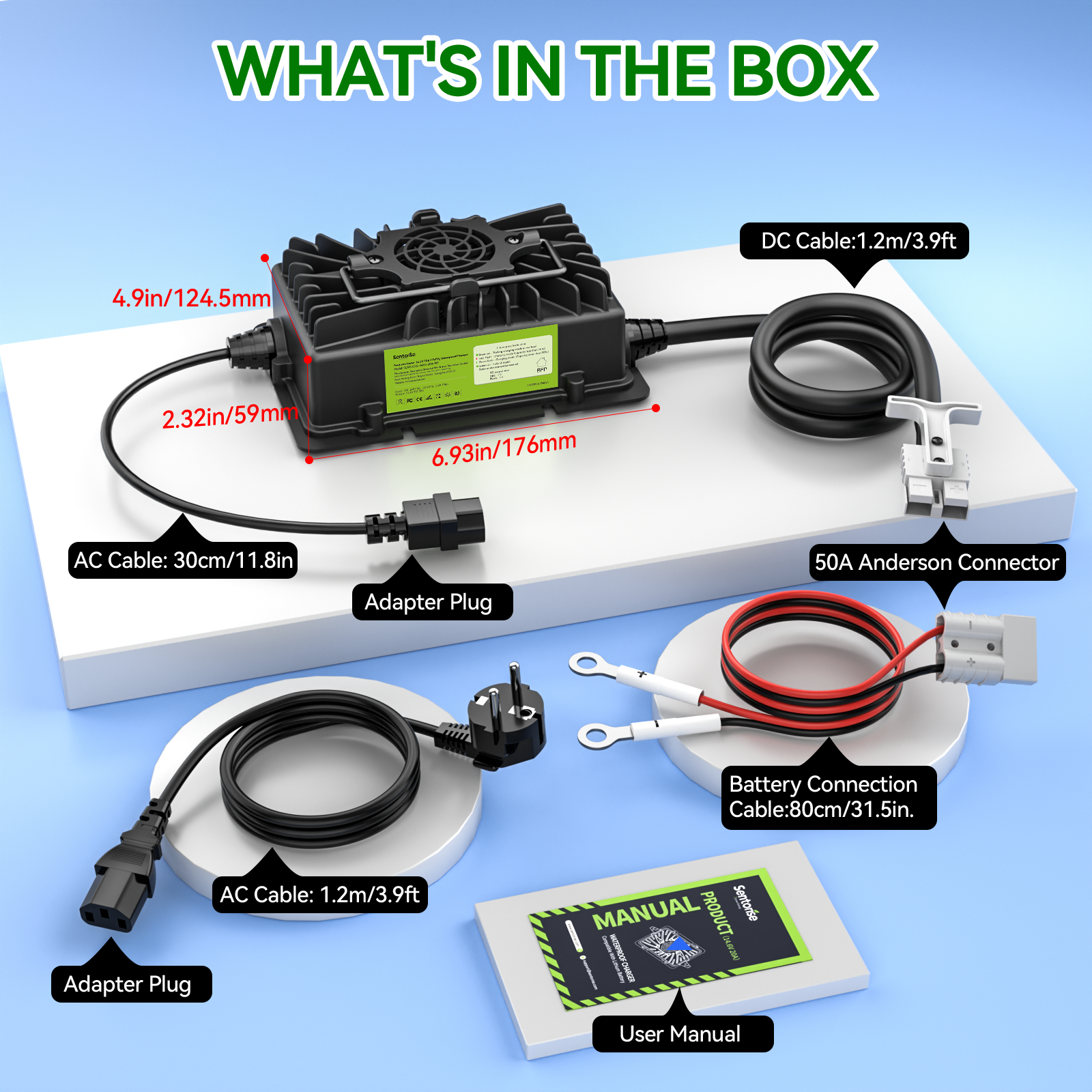

Charger with EU input, Anderson output, technical documentation, and direct Sentorise support.
